YZT toffee pouring production line

Finished product drawing:

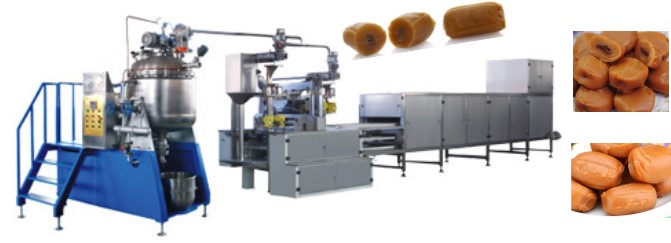

Overview of Production Line:


The GDT series fully automatic PLC controlled toffee pouring and forming production line produced by Shanghai Yixiao Food Machinery, which has years of experience in candy machine manufacturing, is currently the most advanced pouring toffee production equipment in China. The production line integrates mechanical, electrical, and pneumatic control, with a reasonable and compact structure and a high degree of automation; The production efficiency is high, and this production line can produce candies such as toffee, karaoke, and Yikoulian.
The candies produced by this production line unit have the characteristics of strong burnt aroma and good taste. The entire production line is manufactured according to food GMP standards, meeting the hygiene requirements of food GMP, and is a reliable guarantee for food enterprises to easily pass professional certifications such as food GMP and HACCP


Production Process
Sugar melting pot for dissolving sugar
Sugar syrup pump for sugar transportation
Insulated storage of sugar storage tanks
Quantitative transportation of syrup
Special boiling pot for toffee
Unloading pump releases sugar paste
Mixer mixes essence pigment with syrup
The mixed sugar paste enters the hopper
Casting molding
Enter the cooling tunnel for cooling
Demoulding packaging
finished product

Model
YZT150
YZT300
YZT450
YZT600
Casting Speed
45-55 n/min
45-55 n/min
45-55 n/min
45-55 n/min
Maximum sugar weight
Shell: 7g Core: 2g
Shell: 7g Core: 2g
Shell: 7g Core: 2g
Shell: 7g Core: 2g
Steam demand
250kg/h,0.5-0.6MPa
300kg/h,0.5-0.6MPa
400kg/h,0.5-0.6MPa
500kg/h,0.5-0.6MPa
Compressed Air Requirement
0.6lm³/min,0.4-0.6MPa,0.2m³/h
0.6lm³/min,0.4-0.6MPa,0.2m³/h
0.6lm³/min,0.4-0.6MPa,0.2m³/h
0.6lm³/min,0.4-0.6MPa,0.2m³/h
Working Environment Requirement
Temperature:20-25℃;Humdity:55%
Temperature:20-25℃;Humdity:55%
Temperature:20-25℃;Humdity:55%
Temperature:20-25℃;Humdity:55%
Machine Power
24kw/380v
32kw/380v
48kw/380v
75kw/380v
Whole Line Length
16m
16m
17m
17m
Machine Weight
3200kg
3900kg
4300kg
4900kg
Standard Output
150kg/h
300kg/h
450kg/h
600kg/h
