YZB Flat Candy Casting Production Line

Overview

Production Process

Parameters

Finished product drawing:

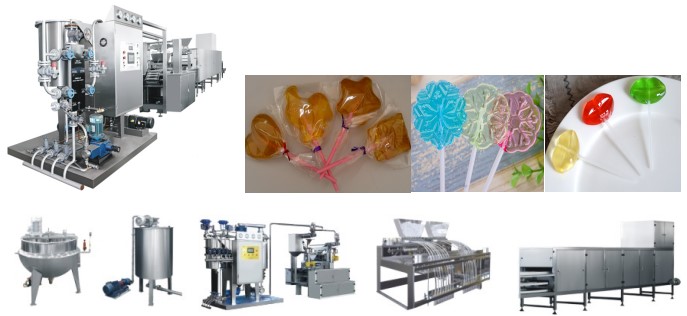

Overview of Production Line:

The fifth generation GD series fully automatic PLC controlled vacuum film continuous sugar syrup pouring and forming production line produced by Shanghai Yixiao Food Machinery, which has years of experience in candy machine manufacturing, is currently the advanced pouring lollipop candy production equipment in China. The production line integrates mechanical, electrical, and pneumatic control, with a reasonable and compact structure and a high degree of automation; High production efficiency, this production line can produce hard candies and lollipops such as monochrome, two-color, spray painted, sandwich, etc.

The candies produced by this production line unit have the characteristics of crystal clear and smooth texture, clear spray patterns, accurate and stable pouring position, and good taste. The entire production line is manufactured according to food GMP standards and meets the hygiene requirements of food GMP, which is a reliable guarantee for food enterprises to easily pass professional certifications such as food GMP and HACCP.

Production Process

Sugar melting pot for dissolving sugar

Sugar syrup pump for sugar transportation

Insulated storage of sugar storage tanks

Quantitative transportation of syrup

Syrup preheating

Thin film boiling

Vacuum effect

Unloading pump releases sugar paste

Mixer mixes essence pigment with syrup

The mixed sugar paste enters the hopper

Casting molding

Automatic insertion rod

Sprinkle nuts and preserved fruits

Enter the cooling tunnel for cooling

Demoulding packaging

finished product

Model	YZB150	YZB300	YZB450	YZB600
Candy weight	According to sugar type	According to sugar type	According to sugar type	According to sugar type
Candy diameter	According to sugar type	According to sugar type	According to sugar type	According to sugar type
Bar size specifications	60-100mm	60-100mm	60-100mm	60-100mm
Casting Speed	45-55 n/min	45-55 n/min	45-55 n/min	45-55 n/min
Steam demand	250kg/h,0.5-0.6MPa	300kg/h,0.5-0.6MPa	400kg/h,0.5-0.6MPa	500kg/h,0.5-0.6MPa
Compressed Air Requirement	0.6lm³/min,0.4-0.6MPa,0.2m³/h	0.6lm³/min,0.4-0.6MPa,0.2m³/h	0.6lm³/min,0.4-0.6MPa,0.2m³/h	0.6lm³/min,0.4-0.6MPa,0.2m³/h
Working Environment Requirement	Temperature:20-25℃；Humdity:55%	Temperature:20-25℃；Humdity:55%	Temperature:20-25℃；Humdity:55%	Temperature:20-25℃；Humdity:55%
Machine Power	18kw/380v	27kw/380v	34kw/380v	38kw/380v
Whole Line Length	17m	17m	19m	19m
Machine Weight	3500kg	4000kg	4500kg	5000kg
Standard Output	150kg/h	300kg/h	450kg/h	600kg/h
